Products Description
HD-60, HD-61, and HD-62, are available. Their dimensions and power ratings are as follows: HD-60 measures 273x126mm and has a power of 30W; HD-61 measures 230x106mm and has a power of 20W; HD-62 measures 197x95mm and has a power of 15W.
How to install the high-fidelity coaxial ceiling speaker on the ceiling? Customers often ask whether a dedicated installation bracket is needed for the Feilipu embedded speaker. The answer is no, and here's why. All our embedded speakers come with plastic feet or spring clips. Before installation, a hole needs to be made in the ceiling or wall. For speakers with plastic feet, use a screwdriver to loosen the screws to make the plastic feet movable. After placing the speaker into the hole in the ceiling or wall, tighten the screws to secure the speaker. For speakers with spring clips, tighten the spring clips before inserting the speaker to complete the installation process.

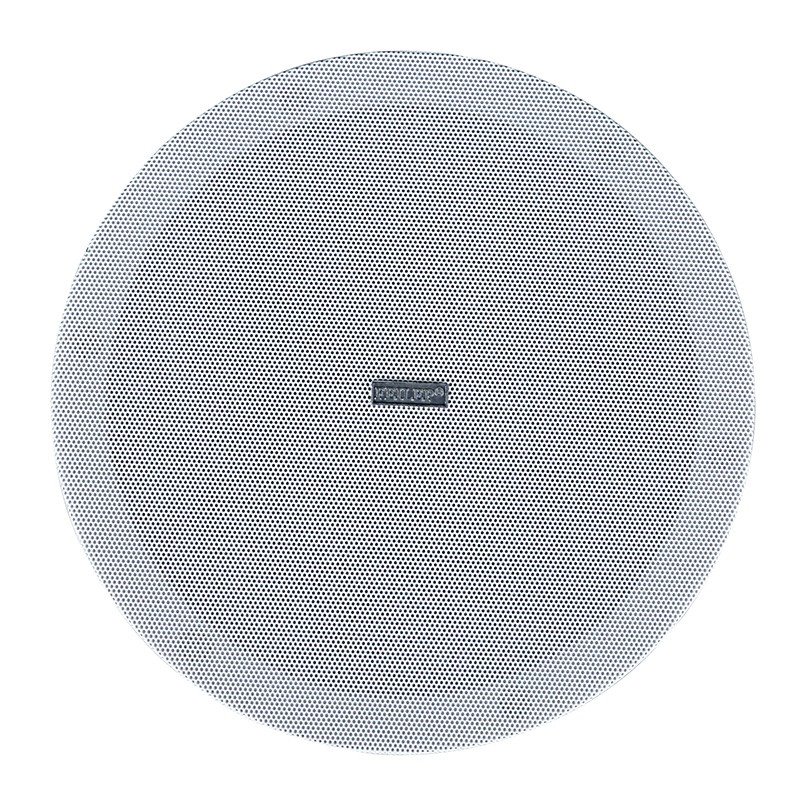

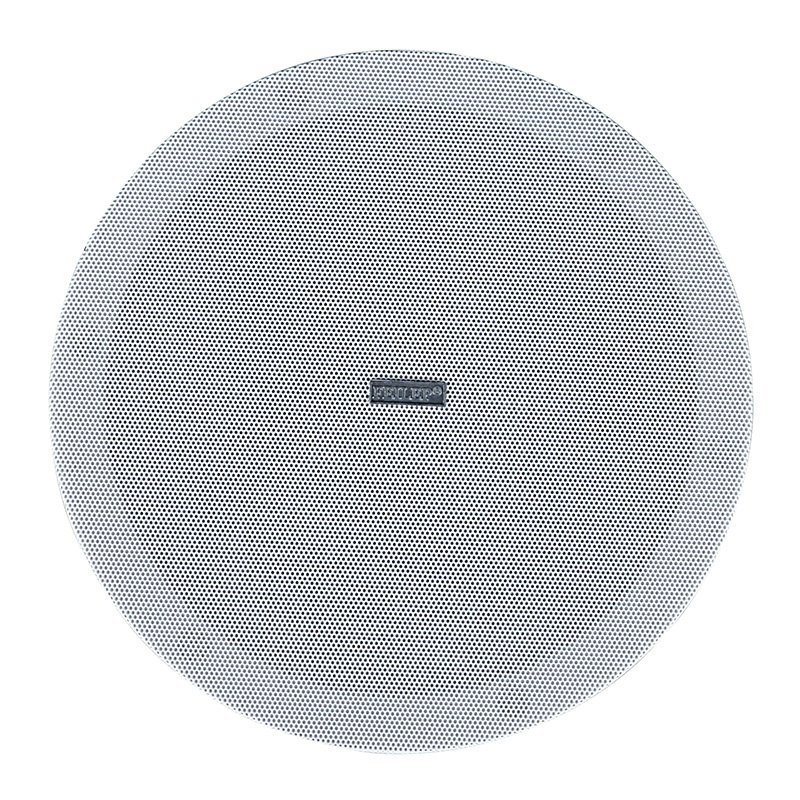

The HD-60, HD-61, and HD-62 embedded ceiling and wall speakers can blend perfectly into any room, not taking up floor space, allowing you to enjoy high-quality music and movies in your home theater or distributed audio system.
product Parameter
|
Model: HD-60 Loading rating: 10/20/30W Transformer taps at 100V: 100V Frequency range: 40-20KHz SPL(@1W/m): 92Db Speaker and Impedance: 8" 8ohms 2-way Dimension(WXHXD)mm: 273*126mm Installation hole: 240mm Color: White or black |
 |
 |
 |
|
Model: HD-61 Loading rating: 10/15/20W Transformer taps at 100V: 100V Frequency range: 50-20KHz SPL(@1W/m): 90Db Speaker and Impedance: 6.5" 8ohms 2-way Dimension(WXHXD)mm: 230*106mm Installation hole: 190mm Color: White or black |
 |
 |
 |
|
Model: HD-62 Loading rating: 5/10/15W Transformer taps at 100V: 100V Frequency range: 50-20KHz SPL(@1W/m): 88Db Speaker and Impedance: 5.5" 8ohms 2-way Dimension(WXHXD)mm: 197*95mm Installation hole: 165mm Color: White or black |
 |
 |
 |
FAQ
1. Regarding product prices:
The prices are negotiable and can be adjusted based on actual circumstances.
According to your quantity or packaging. When you are making an inquiry,
please inform us of the quantity you desire.
2. Regarding samples:
Our company stipulates that all customers must pay for the sample fee and freight.
3. Regarding OEM:
Welcome! You can send us your own designed products. Provide your LOGO, and we can independently produce any LOGO you want to attach for you.
4. Can your company develop molds for us?
Sure, but a certain quantity is still required as a prerequisite.
5. Regarding delivery time: 30 to 45 days after receiving the advance payment and final confirmation, except in special circumstances.
6. Regarding payment or other issues:
Basically, the payment methods are telegraphic transfer or irrevocable letter of credit at sight.
If you have any requirements, please feel free to contact our salesperson at any time!
